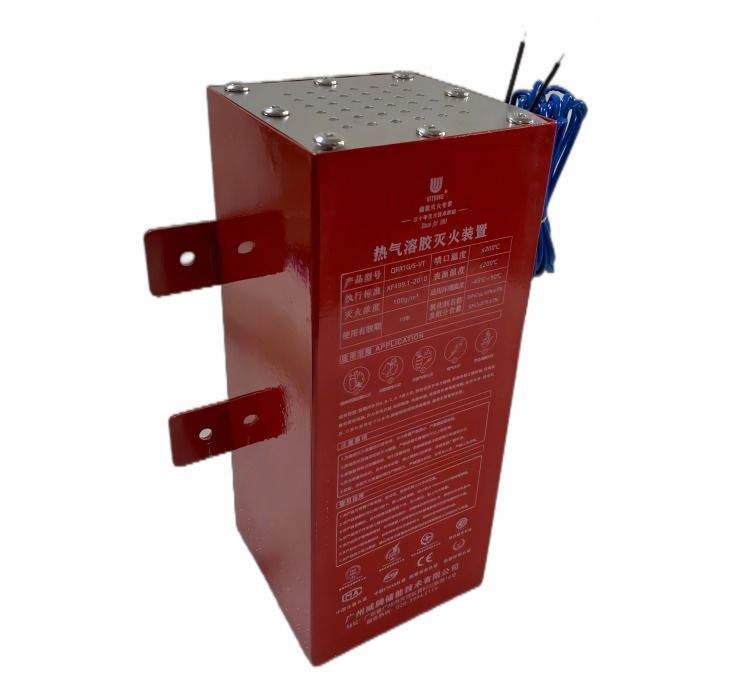

Fire extinguishing aerosol generator Model FOGGS 3.0 G

Production and sale of fire-fighting equipment, cooling towers, steam generators, industrial automation

Mon-Fri from 9-00 to 18-00

Fire extinguishing aerosol generator Model FOGGS 3.0G (куб)

Effective fire suppression designed for large scale applications (23-30 cubic meters of protected volume).

Our managers will answer any questions and help with product selection.

characteristic	FOGGS 3,0G
Model	3.0 G/ S-NH
Operating range	– 45°C~+90°C
Relative humidity of air	≤95%RH
Atomization time	≤30s
Activation delay	≤1s
Temperature at a distance of 350 mm from the nozzle	≤200°C
Temperature at outlet surface	≤200°C
Type and contents of oxidant	Strontium nitrate: 60% ± 5% Potassium nitrate: 20% ± 2%
Gross weight one unit	12kg±300g
Dimensions (mm)	220×220×250
Activation type	Electric / Thermocouple
Starting current	DC24V; ≥500mA
Hot start at temperature	175°C±15°C
Reverse signal	Passive switch
Volume protection	23-30 m3
Period of use	10 years

Low cost: Aerosol systems cost much less than other products on the market today.
Easy installation: no pipes or pressurized cylinders are required.
Cooler Aerosol: a much lower temperature aerosol that does not require a cooler.
Low maintenance and requires no recharging, so it’s always ready to go.
Lightweight: lighter weight housings made of high quality plastic will not collapse or rust over time.
Versatile: provides reliable protection for a wide range of fire hazards and locations.
Non-damaging: will not damage electronic equipment, magnetic media, valuables, etc.
Environmentally friendly: has no global warming potential, does not deplete the ozone layer and is non-toxic.
Efficient: very little aerosol is required compared to other systems.
Safe: delivers aerosol directly to the fire without increasing harmful substances.
Thermal and electrical initiation available.

Generators are supplied complete with brackets.
